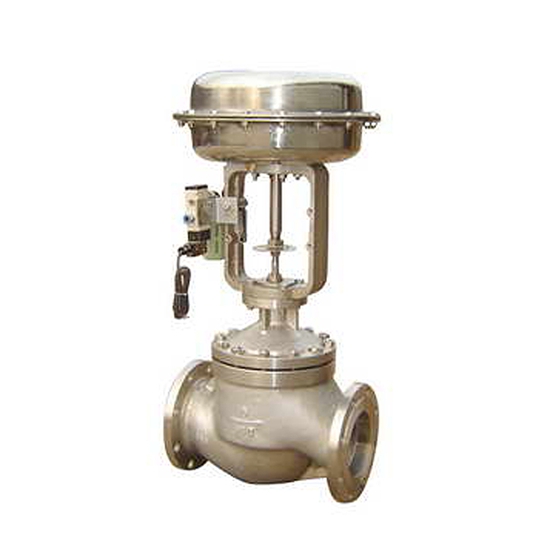

ZMQ series pneumatic diaphragm control shut-off valve

關注次數:

所屬類別:Quick shut-off valve

ZMQ pneumatic shut-off valve driven by the top film structure, equipped with multi-spring actuator. With a compact, light weight, sensitive, fluid channel S streamlined, low pressure drop, large valve capacity, and easy disassembly. Shut-off valve to receive signals from the adjustment of the instrument, cut, open, or change the media flow, to the pressure, flow, temperature, level and other process parameters or automatic control. Widely used in the production process control in petroleum, chemical, metallurgy, electric power, light industry, textile and other industrial sectors and remote control systems.

This series of products are film, piston two. Body structure with a single seat, sleeve, two-seater (two-way) three, there are two forms of packing seals and bellows seal Nominal grade products are PN10, 16,40,64 are four nominal diameter range DN20 ~ 200mm. For fluid temperature from -60 ~ 450 ℃. Leakage Class IV or Ⅵ grade level. Flow characteristics for the quick opening.

Feature
Shut-off valve actuator and multi- spring adjustment mechanism connected with three columns, the entire height can be reduced by about 30 percent , reduce weight by about 30% .
Valve designed according to the principles of fluid mechanics , such as low flow resistance flow channel cross-section , the rated flow coefficient increases by 30%.
Trim part of a tight seal and soft seal type two , tight type of surfacing carbide, soft seal type of soft material, excellent sealing performance when closed .
Balanced trim , improved Xu shut-off valve with pressure .
Bellows sealed to form a complete movement of the valve stem seal , blocking the way out the possibility of media leaks .
Piston actuator , operating force, the use of a large pressure difference .

Main parts and materials
Body, sealing sleeve : HT200, ZG230-450 ZG1Cr18Ni9Ti ZGOCr18Ni12M02Ti
Valve, valve seat : 1Cr18Ni9Ti OCr18Ni12M02Ti 1Cr18Ni9Ti surfacing Stellite
Sleeve valve plug : 1Cr18Ni9Ti OCr18Ni12M02Ti 1Cr18Ni9Ti surfacing alloy too much food company
Packing : PTFE , flexible graphite
Corrugated diaphragm : NBR clip reinforced polyester fabric
Spring : 60Si2Mn
Stem , putter : 2Cr13, 1Cr18Ni9Ti
Spool valve plug ( soft parts ) : PTFE
Bellows : 1Cr18Ni9Ti

Ordering Information
A product model and name 2. Nominal diameter DN (mm 3. Nominal 4 . Flow characteristics required 5. Valve material and trim materials
6 7 media type and temperature range . Valve after pressure ( pressure ) 8 . Sealed form 9 . Matching accessories , it is recommended to install air filters FRL with two five -way solenoid valve
